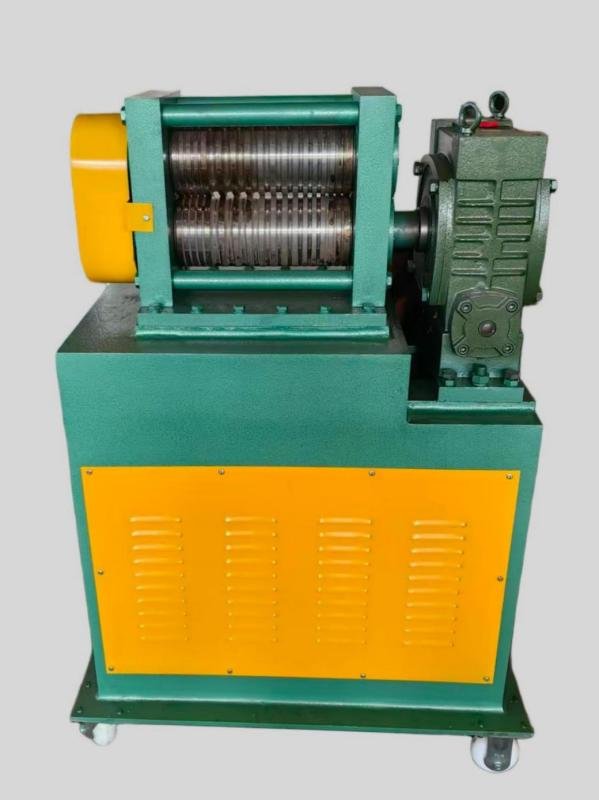

The Wire Pointing Machine is designed to reduce the diameter of wire ends before the drawing process, enabling the wire to pass smoothly through the drawing die and be gripped by the drawing machine. It is an essential auxiliary equipment in wire drawing production lines.
Our wire pointing machine uses high-strength rollers to roll and taper the wire end efficiently. The machine ensures a smooth and burr-free surface, improving feeding efficiency and reducing damage to drawing dies.
Key Features
High-quality roller system
The rollers are made from special die steel and heat-treated to a hardness above HRC58, ensuring excellent wear resistance and long service life.
Stable and durable structure
The archway and frame are welded from thick A3 steel plates, providing a strong and stable machine structure. High-quality rolling mill bearings ensure smooth rotation and reliable operation.
Hydraulic rotation system
The machine adopts a double-ear hydraulic cylinder combined with a large-diameter turntable bearing. This design allows smooth and easy rotation during operation.
Efficient and precise pointing
The machine can process wire of any length. The pointed wire end is smooth, round, and burr-free, with out-of-roundness less than 0.05 mm.
Low maintenance design
The equipment is designed with minimal wearing parts, ensuring long-term stable operation and reduced maintenance costs.
Technical Specifications
-
Roller material: Special die steel (Hardness ≥ HRC58)
-
Roller diameter: 140 mm
-
Roller length: 562 mm
-
Effective working length: 320 mm
-
Number of grooves: 17
-
Motor power: 5.5 kW
-
Roller speed: 39 rpm
-
Machine dimensions: 1200 × 800 × 1466 mm
-
Machine weight: approx. 1400 kg
Typical Hole Arrangement
3.0 – 3.2 – 3.42 – 3.65 – 4.1 – 4.6 – 5.1 – 5.6 – 6.3 – 7.0 – 7.7 – 8.6 – 9.5 – 10.5 – 11.7 – 13 – 14.5 mm
Applications
The wire pointing machine is widely used in wire drawing production lines for:
-
High carbon steel wire
-
Low carbon steel wire
-
PC wire production
-
PC strand production
-
Spring wire and industrial wire processing
