PC Wire Line

Our PC Low Relaxation Pre-Stressed Steel Wire Production Line is designed for the continuous production of high-strength, low-relaxation PC wire used in prestressed concrete applications such as bridges, railway sleepers, poles, piles, and building structures.

The line integrates advanced drawing, heat treatment, and stress-relieving technology to ensure stable mechanical properties, uniform tensile strength, and excellent relaxation performance in compliance with international standards.

🔹 Main Application

Production of:

• 4.8mm – 12.0mm PC low relaxation steel wire

• 1470 MPa / 1570 MPa / 1670 MPa / 1770 MPa grade

• Smooth or indented PC wire

Applicable standards:

• ASTM A421

• BS 5896

• EN 10138

• GB/T 5223

🔹 Production Process

Typical process flow:

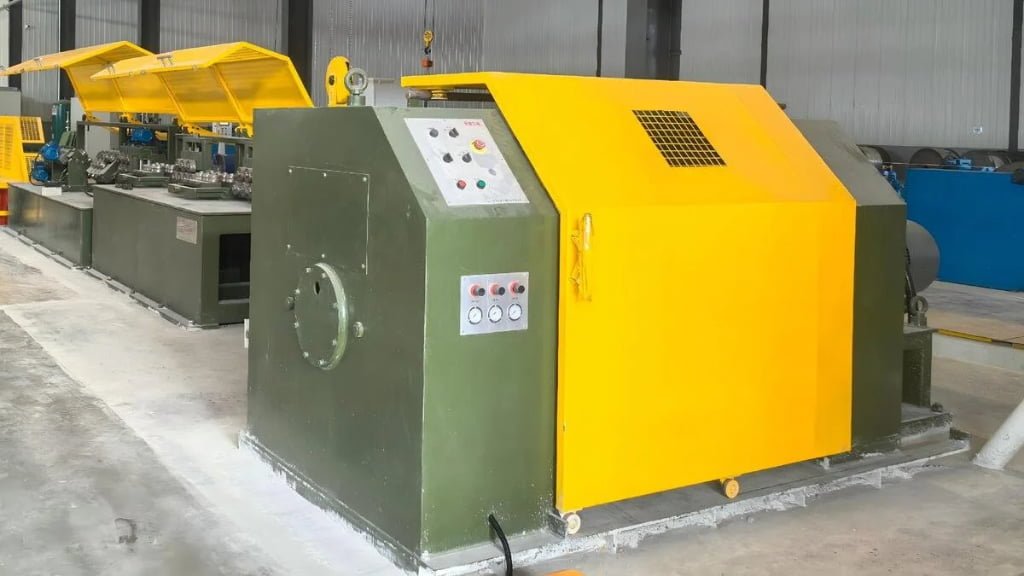

Rod Pay-off → Descaling → Multi-pass Wire Drawing → Patenting Heat Treatment → Stress Relieving → Surface Treatment → Automatic Take-up

The complete line ensures:

• Precise temperature control

• Uniform microstructure

• Stable elongation & relaxation rate

• Excellent surface quality

🔹 Technical Advantages

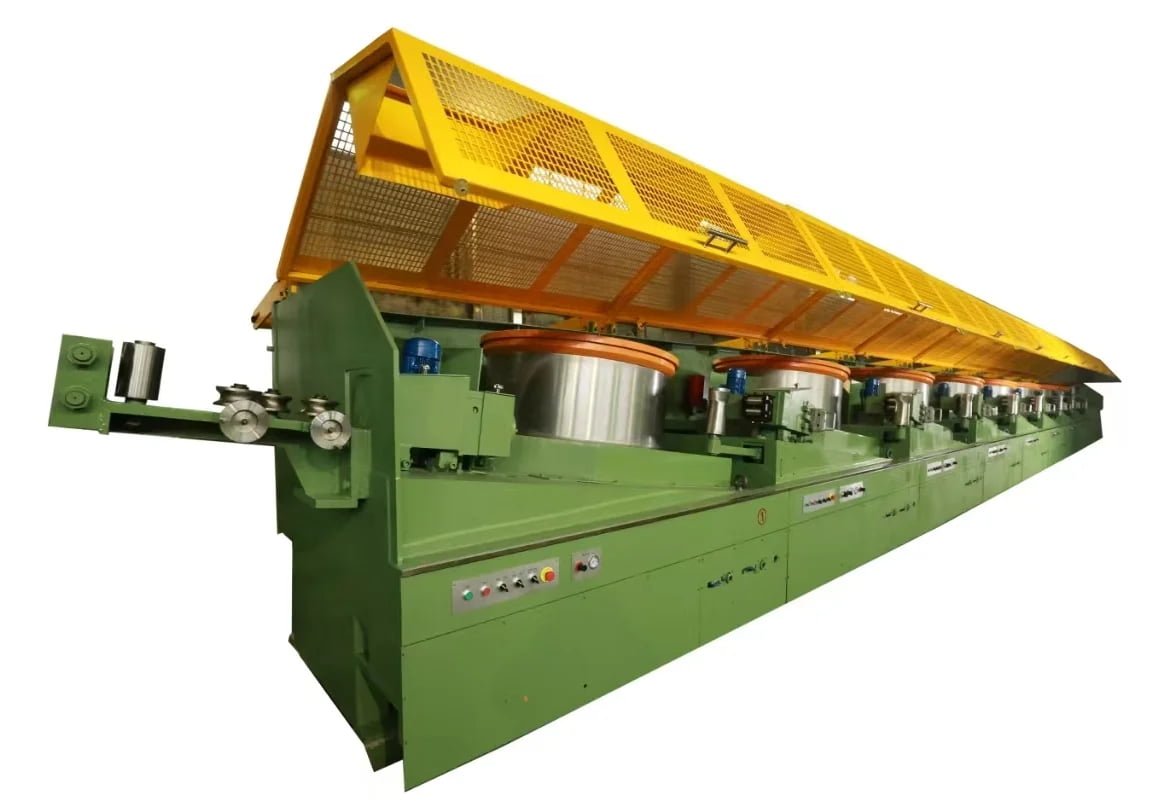

✔ High-speed multi-block drawing system
✔ Hardened & ground gear reducer for stable transmission
✔ Accurate tension control system
✔ Energy-saving heating system

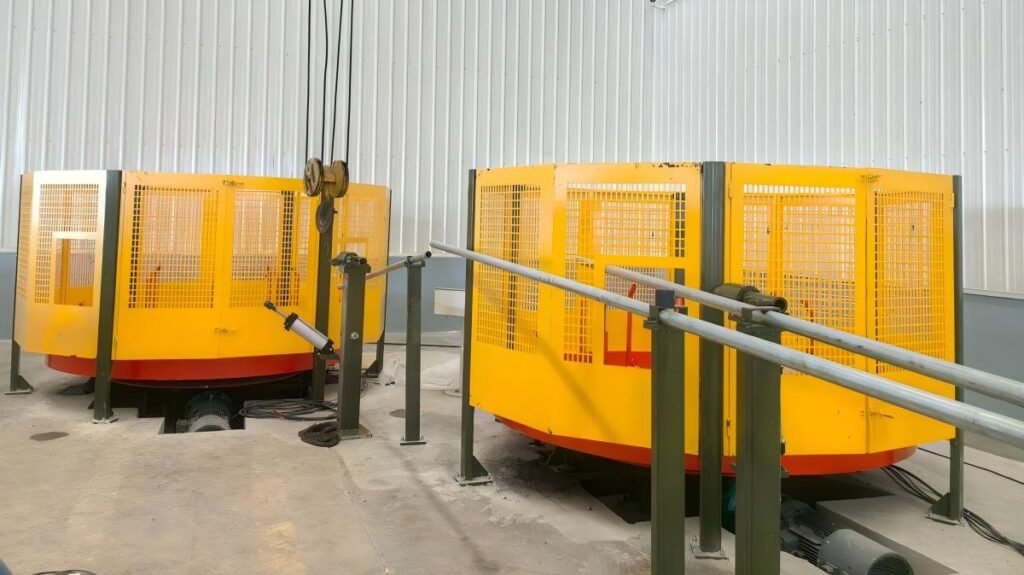

✔ Automatic coiling and compacting unit
✔ PLC centralized control with user-friendly HMI

🔹 Key Features

• Low relaxation rate ≤ 2.5% (1000h)

• High tensile strength and consistency

• Smooth operation with low vibration and noise

• High production efficiency

• Designed for continuous 24-hour industrial operation

🔹 Optional Configurations

• Online diameter measurement

• Eddy current flaw detection

• Automatic weighing and strapping system

• Customized layout according to workshop condition
