The 12.7mm 1×7 PC Strand Production Line is design […]
Technical Parameters
| Item | Technical Parameters |
|---|---|
| Typical Diameter | 12.7mm 11.1mm 9.53mm 8mm |
| Max Tension | 85,000 N |
| Speed | (12.7mm) 90m/min ; (11.1mm) 80m/min |
| Tension Wheel Diameter | 1800mm |
| Spool Diameter | 1120mm |

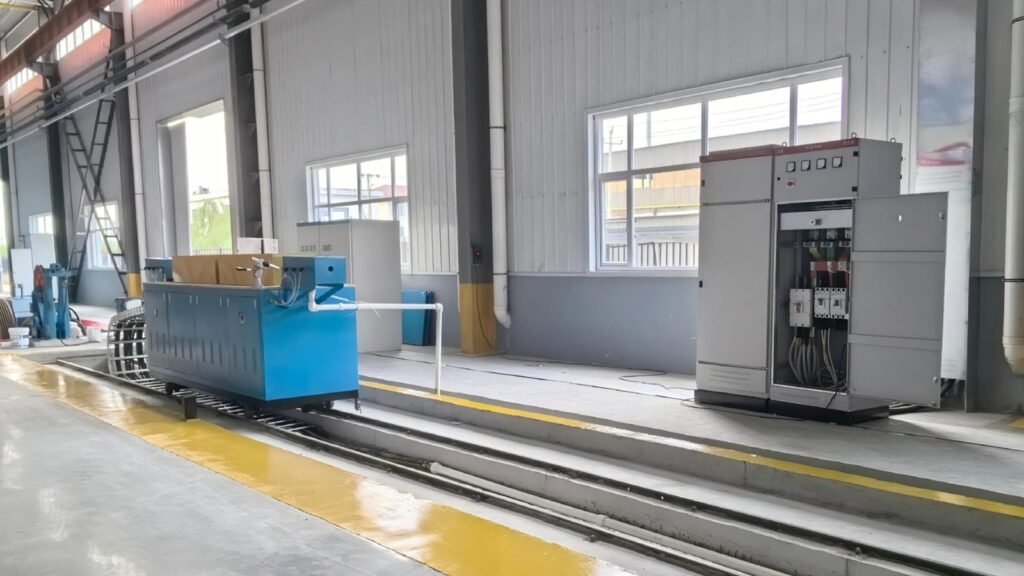

| IF Furnace | Power 350KW Temperature 370±5℃ |
| Total Motor Power | 450KW |
| Drive Mode of Tension Part | Hardened Gear Reducer |
| Speed Control | AC Frequency Converting |
| Motor Control | PLC Control |
| Roll Size (CID * Width) | 760 x 750mm |
| Machine Dimension | 8,000 x 95,000 mm |
Product Details
The 12.7mm 1×7 PC Strand Production Line is designed for the manufacturing of high-strength prestressed concrete strand used in bridges, highways, railway sleepers, high-rise buildings, and large-span structures.
This production line is engineered for stable operation, high tensile performance, and long-term continuous production, meeting international standards for PC strand manufacturing.
Product Overview
The line produces 12.7mm 1×7 PC Strand (seven-wire structure: 6 outer wires + 1 central wire), with high tensile strength and excellent elongation performance.
It is suitable for:
-
Prestressed concrete structures
-
Infrastructure construction projects
-
PC strand manufacturing plants
-
Upgrading existing wire drawing factories to PC strand production
Main Production Process

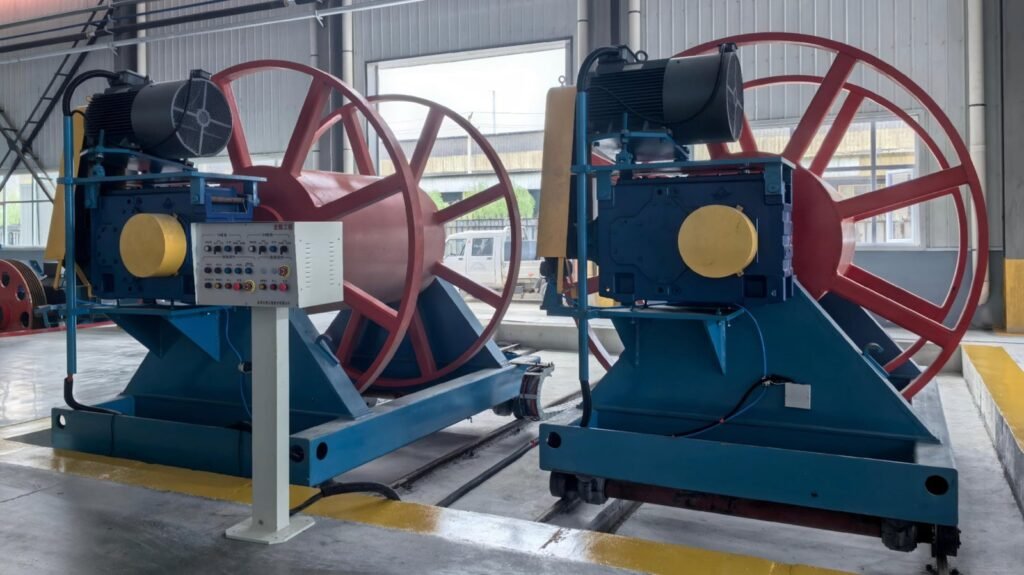

Pay-off → Wire Drawing → Wire Cleaning → Stranding → Pre-forming → Stress Relieving → Online Diameter Control → Automatic Coiling & Packaging
Each section is precisely controlled to ensure:
-
Uniform lay length
-
Stable diameter tolerance
-
Consistent tensile strength
-
Smooth surface finish
Key Features
-

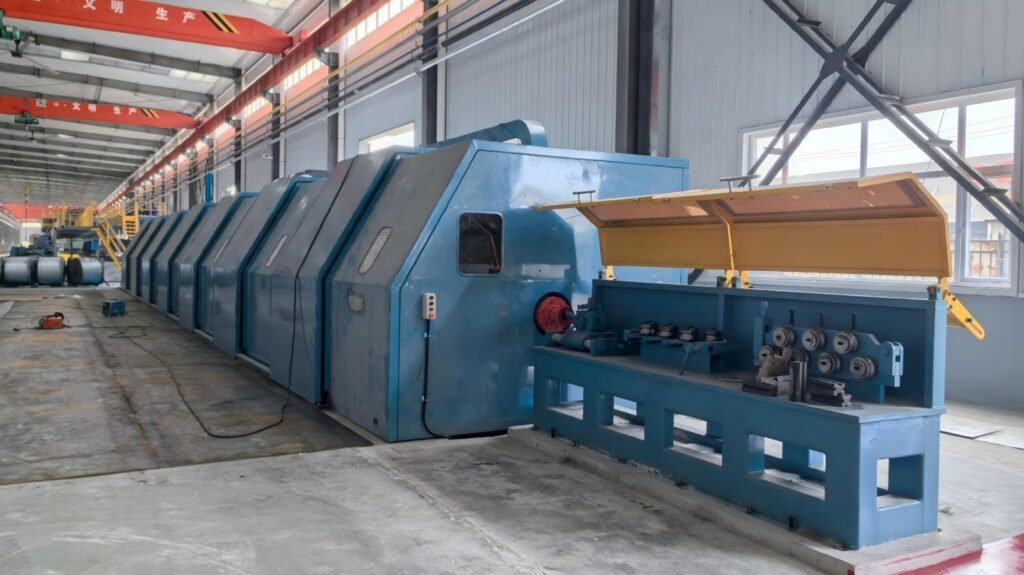

High-speed stable stranding system
-
Precision tension control
-
Energy-efficient heat treatment system
-
Intelligent PLC control system
-
Continuous production with low maintenance
-
Customizable configuration according to capacity requirement
