What Is PC Strand / PC Wire / PC Bar? A Complete Guide for Manufacturers
In the prestressed concrete industry, PC Strand, PC Wire, and PC Bar are three core reinforcement materials widely used in infrastructure and precast construction. For manufacturers, contractors, and plant investors, understanding their differences, standards, and production processes is essential for selecting the right product — or the right production line.
This guide provides a clear and practical overview.

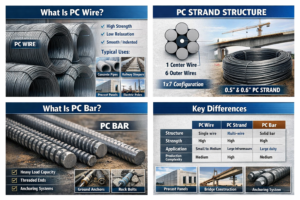

1. What Is PC Wire?
PC Wire stands for Prestressed Concrete Wire.
It is a high-strength steel wire used in prestressed concrete structures.
Key Features:
- High tensile strength (typically 1470–1860 MPa)
- Low relaxation performance
- Excellent elongation
- Smooth or indented surface
Common Applications:
- Concrete pipes
- Railway sleepers
- Precast wall panels
- Electric poles
- Piles
PC wire is usually manufactured from high-carbon wire rod through:
- Descaling
- Multi-pass drawing
- Heat treatment (patenting / stabilization)
- Surface treatment (if required)
2. What Is PC Strand?
PC Strand (Prestressed Concrete Strand) is made by stranding multiple high-strength steel wires together, typically in a 1×7 configuration.
The most common product worldwide is:
- 12.7 mm (0.5”) 1×7 PC Strand
- 15.24 mm (0.6”) 1×7 PC Strand
Structure:
- 1 center wire
- 6 outer wires helically wrapped around it
Key Advantages:
- Higher load capacity than single wire
- Excellent bonding with concrete
- Stable mechanical performance
Typical Applications:
- Bridges
- Highway beams
- Airport runways
- Large-span buildings
- PHC piles
PC strand is currently the mainstream product in global prestressing systems.
3. What Is PC Bar?
PC Bar (Prestressed Concrete Bar) is a high-strength steel bar used in post-tensioning and heavy structural applications.
Compared with strand:
- Larger diameter
- Higher single-piece load capacity
- Threaded ends for anchoring systems
Typical Uses:
- Ground anchors
- Rock bolts
- Heavy-duty structural reinforcement
- Tensioning systems
PC bar is often used in specialized engineering projects requiring concentrated force transmission.
4. Key Differences
| Item | PC Wire | PC Strand | PC Bar |
|---|---|---|---|
| Structure | Single wire | Multi-wire (1×7) | Solid bar |
| Strength | High | Very high | Very high |
| Application | Small to medium components | Large infrastructure | Anchoring / Heavy load |
| Production Complexity | Medium | High | Medium |
For manufacturers planning production investment, PC strand lines generally require higher precision equipment, including:
- Wire drawing line
- Stress relieving furnace
- Stranding machine
- Take-up system
- Online diameter control
5. International Standards
Depending on the market, products are manufactured according to standards such as:
- ASTM International (USA)
- BSI Group (UK)
- Standards Australia (Australia)
- International Organization for Standardization (ISO)
For example:
- ASTM A416 (PC Strand)
- AS/NZS 4672 (Australia)
Compliance with local standards is critical when exporting.
6. Market Trend & Investment Perspective
Globally, demand for prestressed materials is increasing due to:
- Infrastructure expansion
- Urbanization
- Precast construction growth
- Bridge replacement projects
Among the three products:
- PC Strand shows the strongest global growth trend.
- Low-relaxation strand is becoming the standard specification.
- Automation and energy-efficient production lines are increasingly required.
For factories upgrading from conventional wire drawing to prestressing products, adding a PC strand line is often a strategic move toward higher value-added manufacturing.
Conclusion
PC Wire, PC Strand, and PC Bar are all essential materials in prestressed concrete systems, but they serve different structural and engineering purposes.
For manufacturers, choosing the right product depends on:
- Target market demand
- Investment budget
- Technical capability
- Required certifications
Understanding these differences is the first step toward building a competitive prestressing production business.
If you are considering expanding into PC Wire or PC Strand production, selecting the right equipment configuration and process design will directly determine your long-term profitability and market positioning.
